Engineering Machinery Components Explained

Understanding your engine's architecture is key to effective maintenance. Here are 10 essential engine parts and their function, which we supply globally:

• Cylinder Block: The foundation, housing the cylinders. (Caterpillar 3044 Cylinder Block)

• Crankshaft: Converts the piston's reciprocating (up-and-down) motion into rotational motion. (Komatsu PC200-8 Crankshaft)

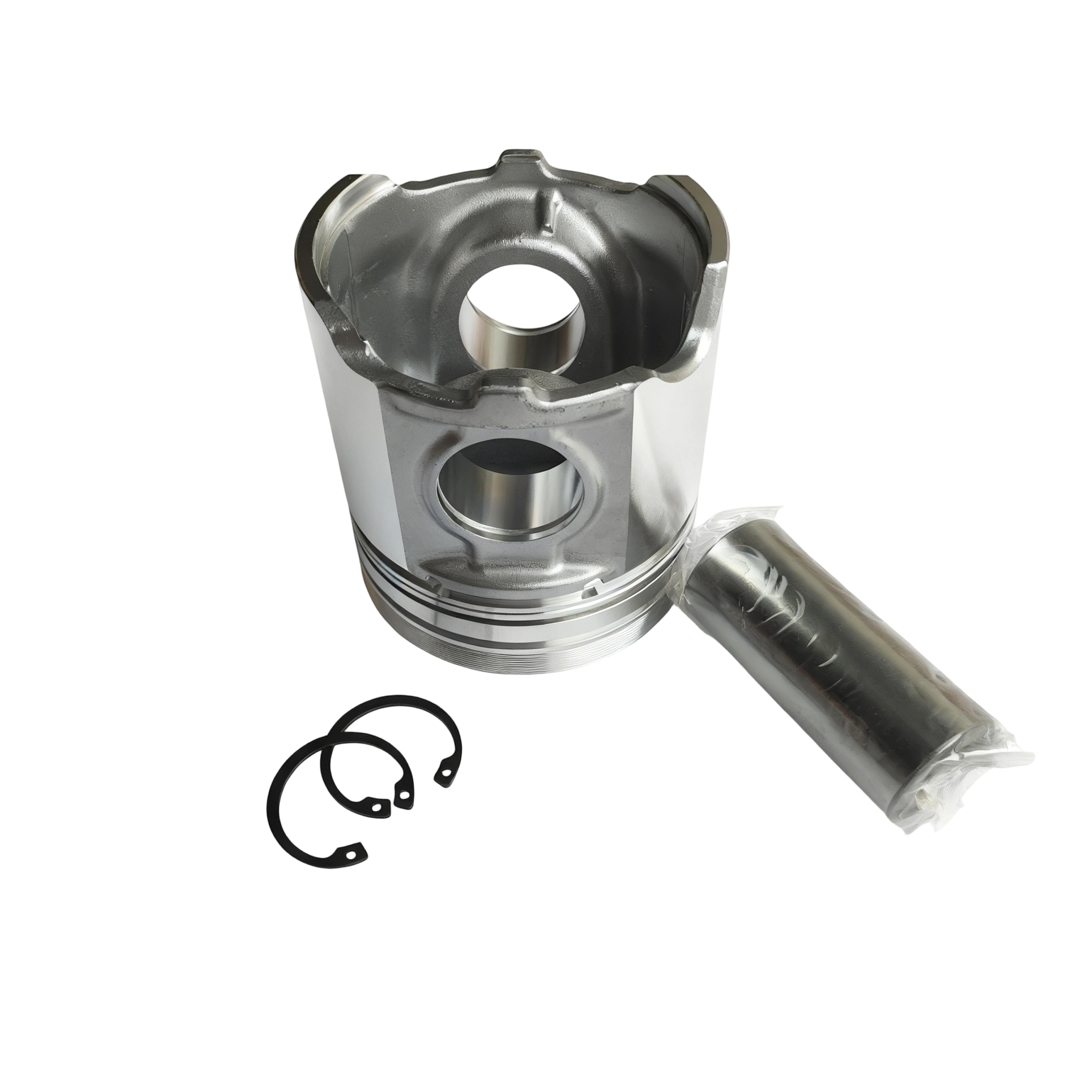

• Piston Pin: Connects the piston to the small end of the connecting rod, allowing for angular movement. (Isuzu 6HK1 Piston Pin)

• Main Bearing: Installed in the cylinder block, supporting and positioning the crankshaft. (Cummins ISB 6.7 Main Bearing)

• Connecting Rod: Links the piston to the crankshaft. (Weichai WP12 Connecting Rod)

• Thrust Washer: Located next to the main bearing, controlling the axial movement (end play) of the crankshaft. (Kubota V3800 Thrust Washer)

• Camshaft: Synchronously opens and closes the engine's intake and exhaust valves. (Yanmar 4TNV94 Camshaft)

• Gasket: A sealing component placed between two mating surfaces (e.g., cylinder head and block) to prevent fluid or gas leakage. (Isuzu 4BG1 Head Gasket)

• Flywheel: Located at the rear of the crankshaft, storing rotational energy and smoothing out engine output. (Caterpillar D8T Flywheel)

• Turbocharger: An air compressor driven by exhaust gases, installed on the exhaust manifold to force more air into the engine for increased power. (Komatsu PC400-7 Turbocharger)

Maintenance Tip: Preventing Engine Overheating

A common issue, particularly in excavators like the Caterpillar 330D with a C9 engine, is Engine Overheating. This can lead to severe damage to the cylinder head and gaskets.

Fault & Solution:

Fault: Sudden rise in coolant temperature, loss of power, and potential coolant spray from the cap. This is often caused by a failing water pump, a blocked radiator, or a cracked thermostat housing.

Solution: Immediately stop the engine. Check the coolant level and inspect the radiator core for debris. If the radiator is clean, the problem is likely internal. A thorough inspection of the water pump (which we supply) and the thermostat is required. Replace the faulty component using a complete gasket set to ensure a perfect seal.

General Engine Maintenance Plan:

• Oil & Filter Change: Strictly follow the manufacturer's recommended intervals (typically 250-500 hours) using high-quality oil and filters to protect the Piston Rings and Bearings.

• Coolant Check: Test the antifreeze protection and corrosion inhibitors every 1000 hours. Flush the system as recommended to prevent scale build-up that damages the Water Pump.

• Fuel System: Regularly drain water and sediment from the fuel system and replace fuel filters to protect the high-precision Injector and Diesel Pump components.
