Expert Solutions for Excavator Engine Failures | Premium Aftermarket Parts
Our factory specializes in direct-sale engine liners and high-quality export parts. We provide customized development for all engine models, ensuring perfect fit and durability.

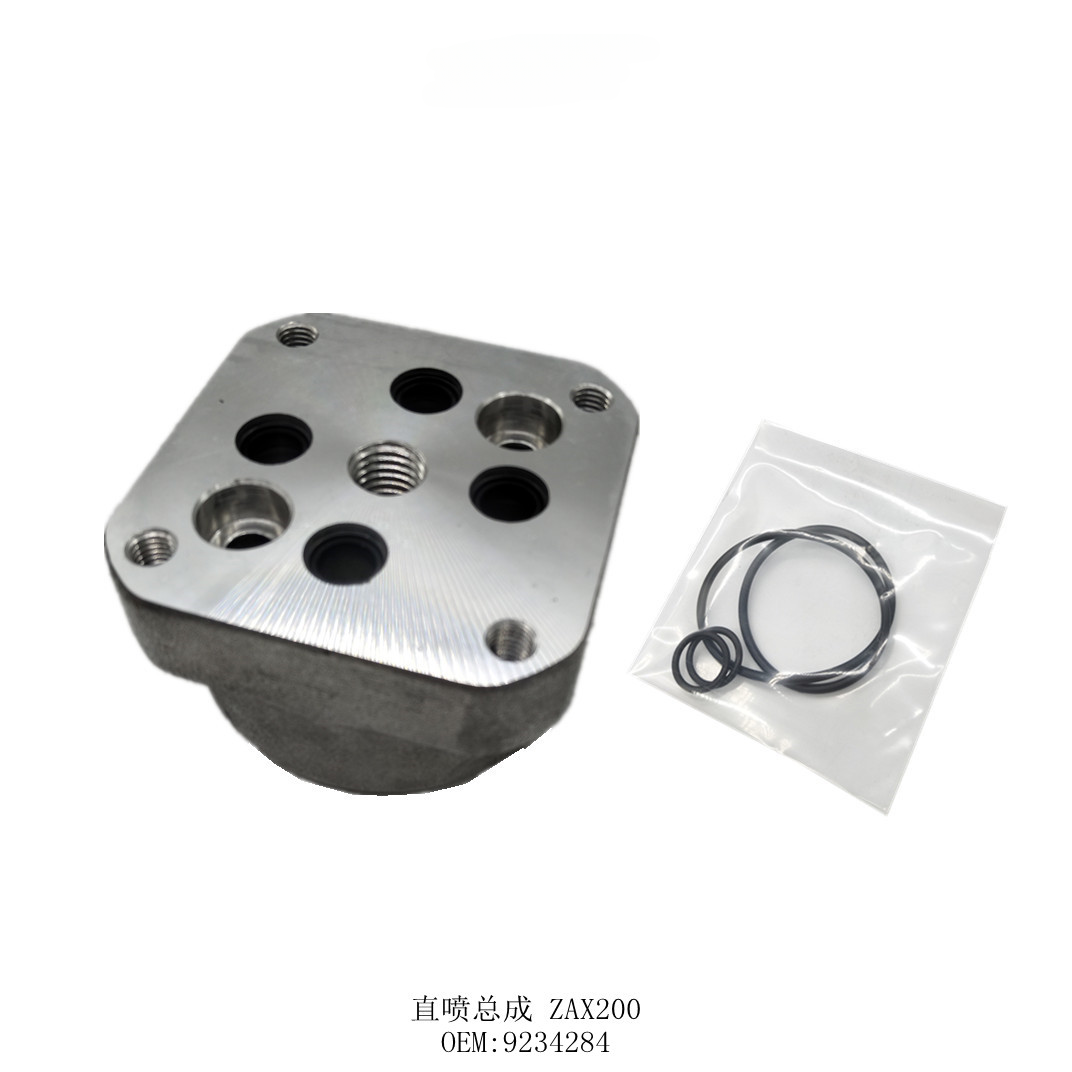

Honour Time Machinery Limited provides the Hitachi Direct Injection Assembly 9234284 and the Komatsu Float Switch 7861-92-4800 (7861924800) to solve critical equipment issues like starting failures and fluid level detection errors.
| Specification Name | Detail Information |
|---|---|
| Model NO. | 9234284 / 7861-92-4800 (7861924800) |
| Application | Excavator Engine System / Cooling & Electrical System |
| Excavator Models | Hitachi ZAX Series / Komatsu PC Series |
| Condition | Brand New OEM High Quality Replacement |
| Manufacturer | Honour Time Machinery Limited |
| Origin | China (Source Factory Direct) |
| Capacity | 5000 PCS / Year |
| Payment Terms | T/T, Western Union, MoneyGram |
We supply a full range of engine components for Cummins, Komatsu, Caterpillar, Isuzu, Kubota, Yanmar, and Weichai engines.
| 1. Liner Kit / Cylinder Liner | 2. Piston / Piston Ring Set | 3. Gasket Kit / Head Gasket |
| 4. Crankshaft / Camshaft | 5. Valve Guide / Valve Seat | 6. Fuel Nozzle / Injector |
| 7. Engine Bearing / Thrust Washer | 8. Pressure Switch / Sensor | 9. Solenoid / Flameout Valve |
| 10. Radiator / Fan Cooling | 11. Main Valve / Relief Valve | 12. Accelerator Motor / Monitor |
| 13. Water Pump / Oil Pump | 14. Turbocharger / Air Intake | 15. Cylinder Block / Head |
| Brand | Supported Engine Models |
|---|---|
| Komatsu | 3D82, 3D84, 4D105, 6D95, 6D108, 6D110, 4D84, 4D95, 6D102, 6D105, 6D114, 6D170 |
| Isuzu | 3LD1, 4LE1, 4BG1, 4HK1, 6SD1, 6WG1, 4LE2, 4JB1, 6BG1, 6HK1, 6WF1 |
| Caterpillar | 3114, 3116, C4, C6, 3064T, S6K, C7, C-9, C13 |
| Mitsubishi | 4D34, 4D24, K4M, S3Q2, 6D16, 6D24, S4KT, 6D40 |
| Yanmar | 4D88E, 4TNE84, 4TNV88, 4TNV94L, 4TNE88, 4TNE94, 4TNV98, 4TNV106 |
| Hino | J05E, J08E, V25C, EF750, P11C, V21C, H06CT, H07D |
| Cummins | QSB6.7, QSM11-C, B5.9-C, B3.9-C, QSM11, C8.3-C |
| Volvo | D6D, D6E, D9E, D12D, D7D, D7E, D12E, D16D |
Turbocharger (Cummins QSB6.7): Located on the exhaust manifold. Used to increase engine power by forcing air into the combustion chamber.
Cylinder Head (Komatsu 6D102): Installed on top of the cylinder block. It seals the cylinders and houses valves and injectors.
Piston Ring (Caterpillar S6K): Fitted in the grooves of the piston. Ensures a tight seal for combustion and regulates oil consumption.
Crankshaft (Isuzu 4HK1): Located in the bottom of the engine block. Converts linear piston movement into rotational force.
Water Pump (Kubota V2403): Mounted on the front of the engine. Circulates coolant to prevent overheating during high-load operations.
Fuel Injector (Yanmar 4TNV94): Positioned in the cylinder head. Precisely sprays fuel into the chamber at high pressure.
Main Bearing (Weichai WD615): Located within the crankcase. Supports the crankshaft and reduces friction during rotation.
Oil Pump (Caterpillar C7): Situated in the oil pan or block. Circulates engine oil to all moving parts for lubrication.
Thermostat (Komatsu 4D95): Found in the cooling line. Controls the engine operating temperature by regulating coolant flow.
Solenoid Valve (Isuzu 6BG1): Often used for fuel shut-off. Electrically controlled to stop engine operation immediately.
Device: Caterpillar 320D Excavator
Issue: Engine over-heating and low power output.
Diagnosis: Clogged radiator and worn-out Water Pump (Part No. 172-1538).
Solution: Flush the cooling system, replace the water pump with our high-quality replacement, and check the thermostat. After replacement, the engine temperature stabilized under full load.
Maintenance Tip: Always check your Float Switch (like Komatsu 7861-92-4800) regularly to ensure your cooling system fluid levels are reported accurately to the monitor. This prevents sudden engine seizure.
High precision manufacturing for Hitachi 9234284 ensures optimal fuel atomization.
Direct fit for Komatsu PC200-7/8 excavators using 7861-92-4800 float sensors.
Constructed from heavy-duty alloys for long-lasting durability in harsh mining conditions.
OEM standard performance at a competitive factory-direct price.
Strictly tested to solve starting issues and inaccurate fluid level warnings.
