Technical Insight: Engine Component Definitions

Understanding the function of key components is crucial for proper engine maintenance and part selection. Here are 10 essential engine part definitions and their applications in real-world machinery:

1. Caterpillar 3116 Fuel Injector: Installed in the cylinder head, this device atomizes and injects fuel into the combustion chamber. (Caterpillar 320B Excavator Fuel Injector)

2. Komatsu 6D95 Piston Ring: Located on the piston, the rings seal the combustion chamber and regulate oil consumption. (Komatsu PC200-6 Excavator Piston Ring)

3. Isuzu 4BG1 Gasket Head: A seal placed between the cylinder head and the engine block to prevent leakage of coolant and combustion gases. (Isuzu NPR Truck Gasket Head)

4. Yanmar 4TNV98 Engine Bearing: A precision component fitted to the connecting rod and main journals of the crankshaft to reduce friction. (Yanmar ViO55 Mini-Excavator Engine Bearing)

5. Volvo D6E Radiator: A heat exchanger located at the front of the engine, responsible for dissipating heat from the engine coolant. (Volvo EC140B Excavator Radiator)

6. Hino P11C Turbocharger: Mounted on the exhaust manifold, it uses exhaust gas energy to compress intake air, boosting power. (Hino 700 Truck Turbocharger)

7. Cummins B3.9-C Water Pump: A centrifugal pump bolted to the engine block, circulating coolant through the engine and radiator. (Cummins 4BT Engine Water Pump)

8. Mitsubishi 4D34 Liner Kit: A sleeve inserted into the cylinder block that forms the cylinder wall. (Mitsubishi Canter Truck Liner Kit)

9. Kubota V2203 Oil Pump: Located in the oil pan or engine block, it forces lubricating oil through the engine's oil passages. (Kubota KX161 Mini-Excavator Oil Pump)

10. Weichai WP10 Flywheel Housing: Attached to the rear of the engine block, it houses the flywheel and serves as the mounting point for the transmission. (Weichai-powered Shacman Truck Flywheel Housing)

Troubleshooting & Maintenance Guide: Caterpillar C7 Engine Misfire

Fault: A Caterpillar C7 engine, typically found in a Caterpillar 320D Excavator, begins to run rough, exhibits a distinct misfire, and shows Diagnostic Trouble Codes (DTCs) related to injector circuit faults.

Possible Cause and Solution: This issue is often traced back to the injector wiring harness. The constant vibration and high temperatures can cause the wire insulation to chafe against engine components or melt, leading to a short circuit or open circuit in the injector signal.

• Diagnostic Step: Use a multimeter to check the resistance and continuity of the injector wire harness circuits between the Engine Control Unit (ECU) and the injector.

• Repair Action: If a fault is confirmed, replace the entire Caterpillar C7 Fuel Injector Wire Harness with a high-quality, heat-resistant replacement to ensure reliable current flow.

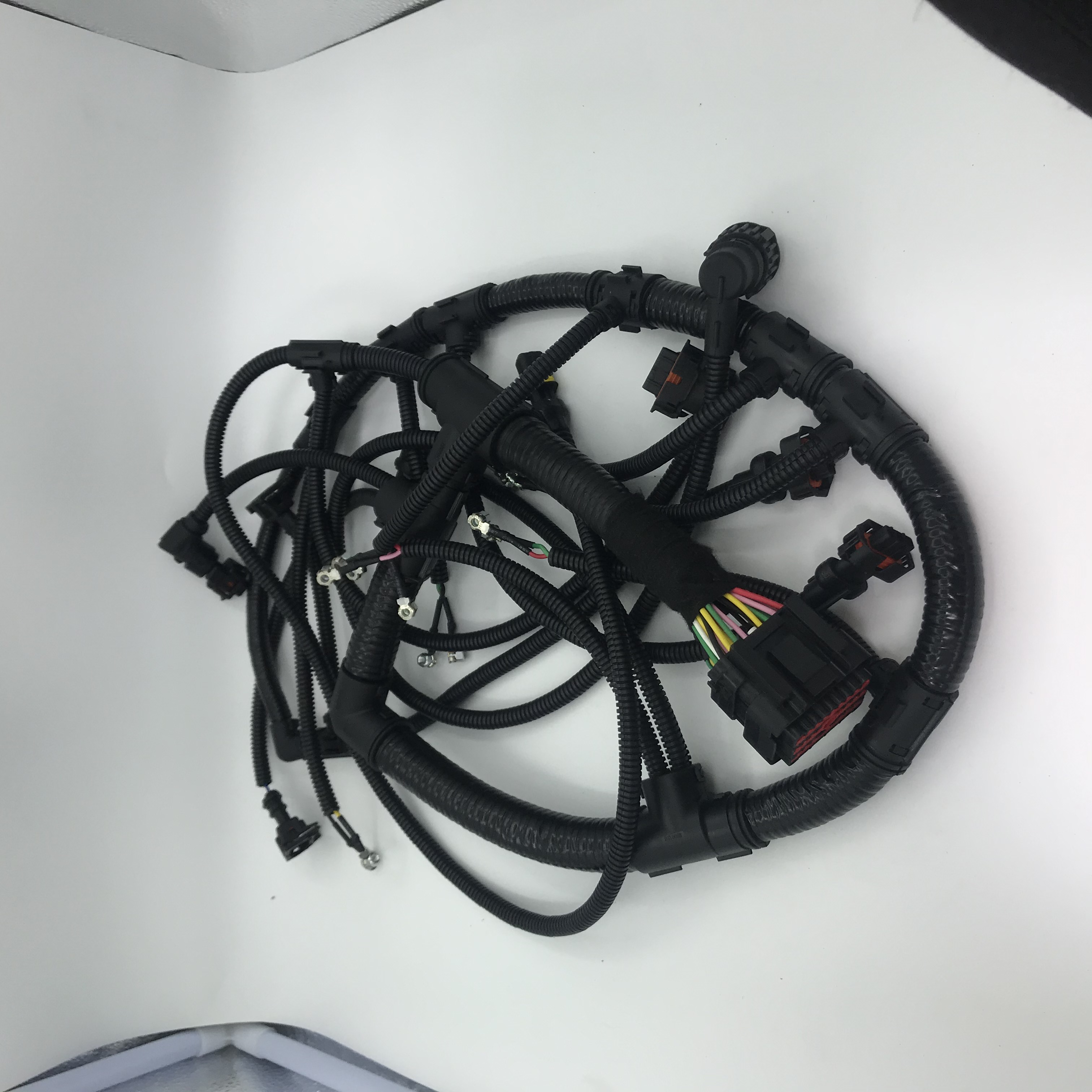

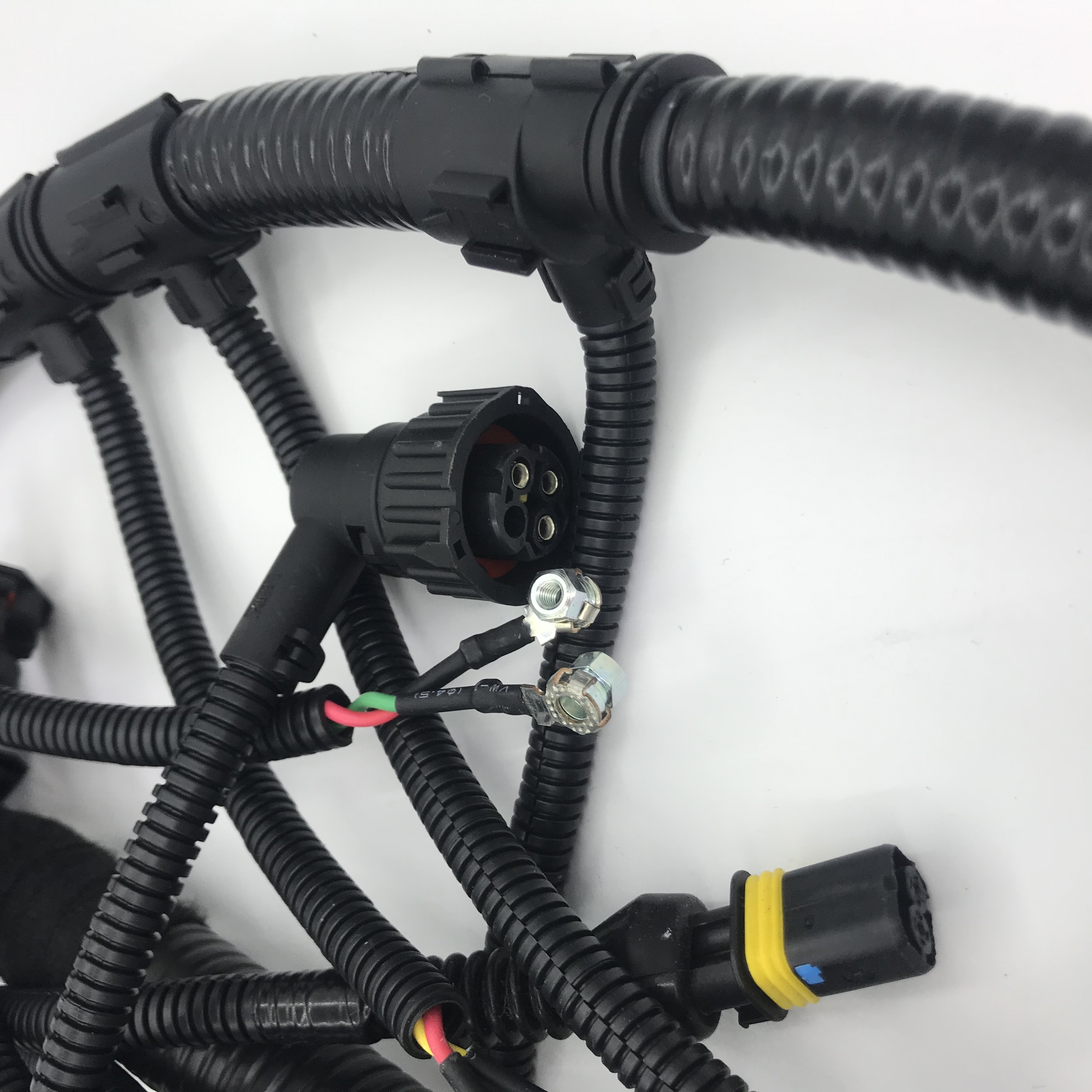

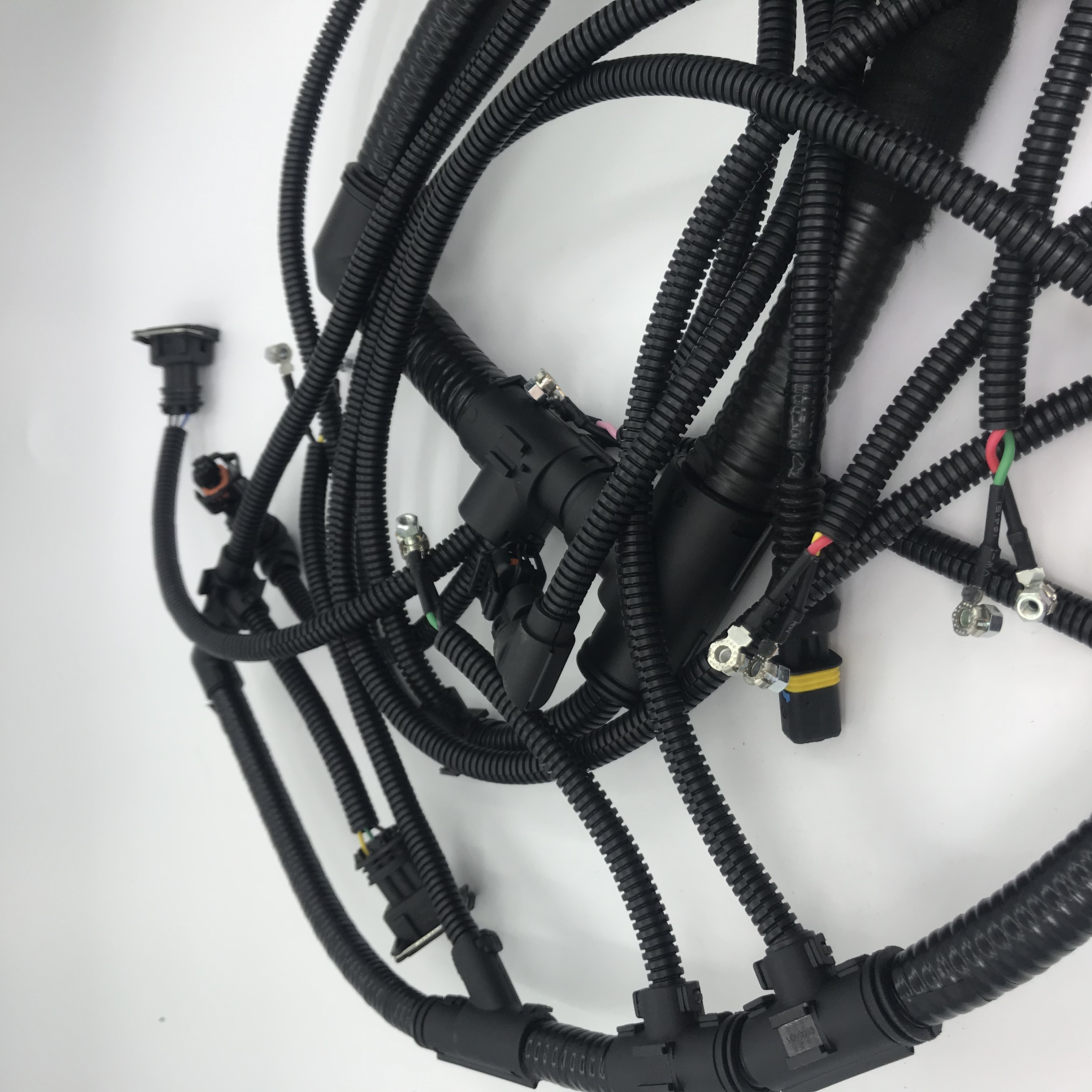

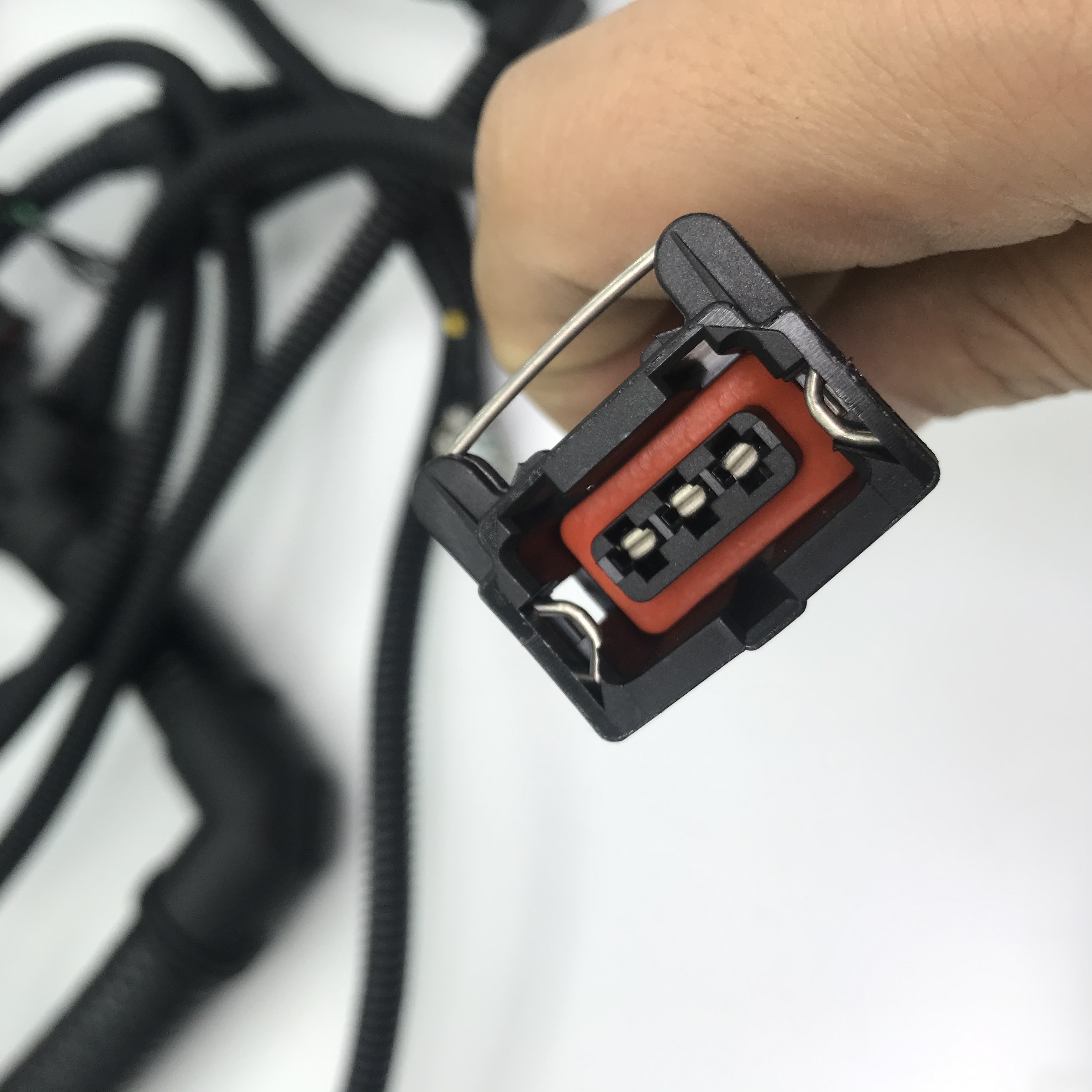

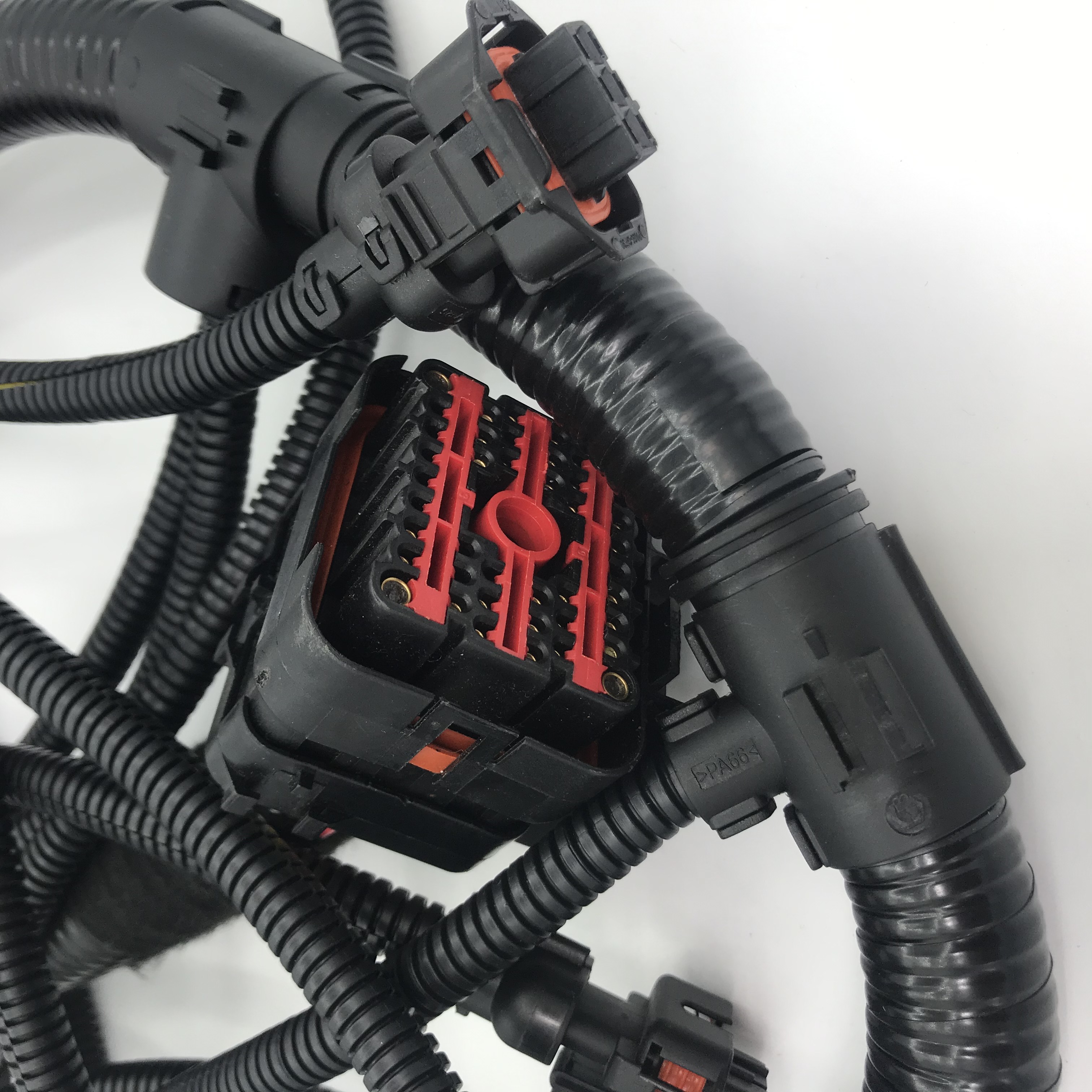

General Maintenance Tip: Regular preventative maintenance should include visual inspection of all engine wiring and harnesses for signs of wear, abrasion, or cracking. Securing loose wires and applying high-temperature protective sleeving can drastically extend the life of critical components like the Volvo D7E Engine Injector Wire 21307689.
