As a direct source manufacturer, Honour Time Machinery Limited offers full Cylinder Liner customization and development services for the global export market. We are your reliable partner for engineering machinery components.
Explore custom solutions for: Isuzu FXZ Liner customization, Komatsu PC300-8 Cylinder Liner manufacturer, and Caterpillar 330D Cylinder Liner development.

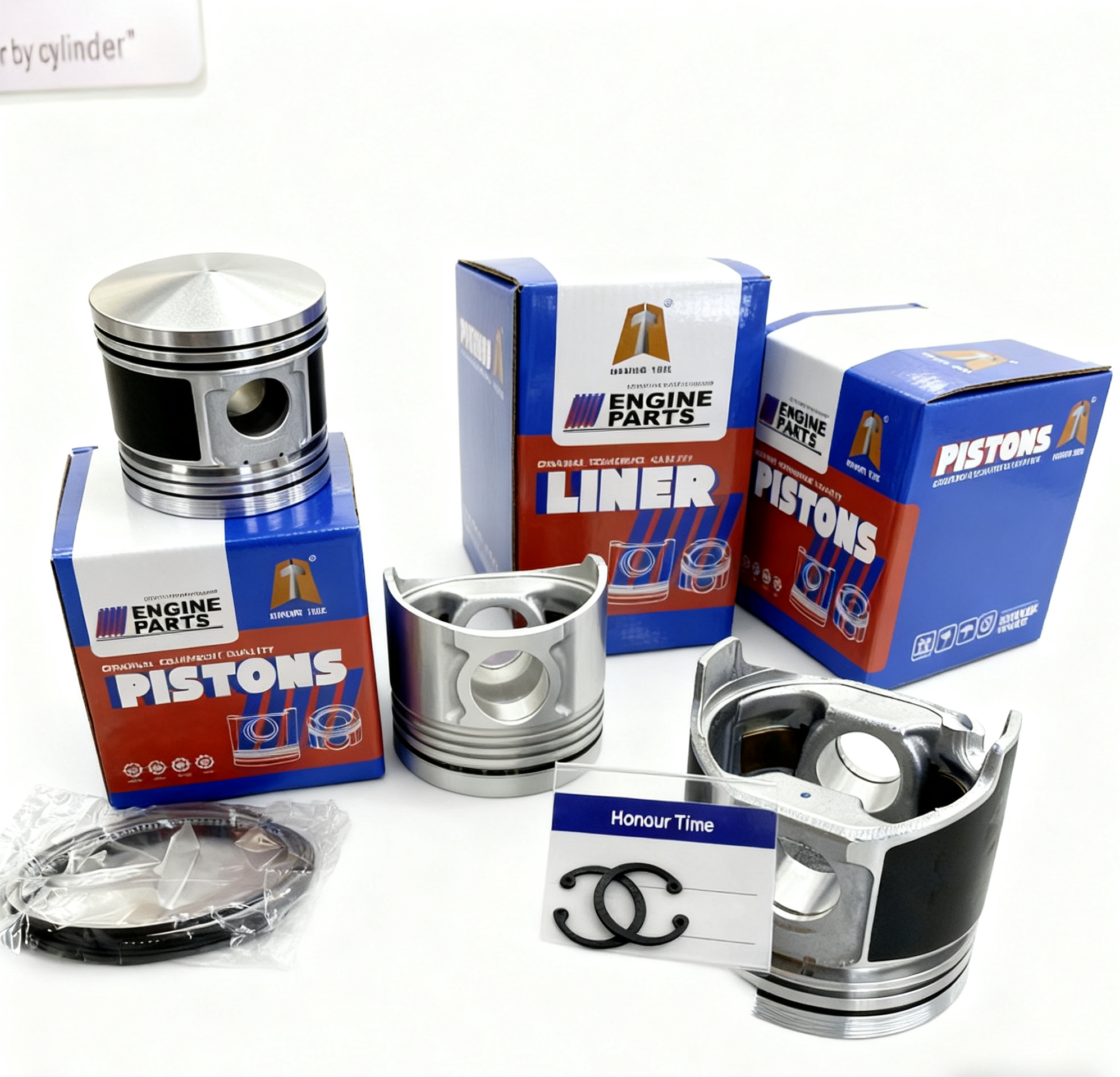

Honour Time Machinery Limited is proud to present premium replacement components engineered for the rigorous demands of the Isuzu 6SD1TC engine. This essential selection of parts ensures peak engine performance and longevity for heavy-duty applications. Our commitment to quality means every component, from the core Piston to the critical Liner Set, meets or exceeds OEM specifications. We provide the genuine alternative for those seeking reliable heavy equipment diesel spares and exceptional value in the global market.
The table below provides detailed specifications for the Isuzu 6SD1TC Piston, Liner, and Piston Ring Set, including both the original and simplified part numbers (without symbols) for seamless global diesel engine parts sourcing.
| Piston Details | Liner Details | Ring Set Details | |||
|---|---|---|---|---|---|
| Engine Model No. | 6SD1TC | Liner No. | 1-11261-298 / 111261298 | Ring Set No. | 1-12121-119-2 / 1121211192 |
| Piston No. | 1-12111-842-0 / 1121118420 | Bore Diameter | 120.00 mm | RIK No. | RI67389 |
| Bore Diameter | 120.00 mm | Inside Bore | 120.00 mm | TP No. | 33810 |
| No. of Cyl | 6 | Bottom Outside | 127.00 mm | NPR No. | SWG30467 |
| Total Length | 129.50 mm | Total Length | 240.00 mm | Top Ring | 3.0 mm |
| Comp Height | 76.50 mm | Top Outside | 130.00 mm | 2nd Ring | 2.5 mm |
| Chamber Dia | 64.00 mm | Flange Depth | 7.0 mm | Oil Ring | 4.0 mm |
| Ring Groove | 3.0/2.5/4.0 mm | Surface Treatment | Phosphated | Bushing No. | 1-12518-052-0 |
| Pin Size | 42 x 96 mm | FF/SF | Flange/Semi-Finished | ||
At Honour Time Machinery Limited, our core business is delivering comprehensive engine solutions. We specialize in supplying complete Engine Assemblies and a vast inventory of quality spare parts for major manufacturers, including Cummins, Komatsu, Caterpillar, Isuzu, Kubota, Yanmar, and Weichai. Our extensive product range covers everything needed for a successful engine rebuild: Cylinder Liner, Piston, Piston Ring, Main Bearing, Con Rod Bearing, Thrust Washer, Overhaul Gasket Kit, Diesel Pump, Injector, Crankshaft, Turbocharger, Water Pump, Oil Pump, Cylinder Block, Cylinder Head, and Connecting Rod.
We are focused on supporting your repair and maintenance needs by offering high-quality affordable engine rebuild kits, being a reliable engine parts exporter, providing Genuine Isuzu 6SD1TC parts, and specializing in construction machinery engine rebuild components. Our commitment extends to delivering OEM quality diesel spares, heavy-duty truck engine components, and being the best source for Komatsu engine spares pricing. We provide Caterpillar diesel components quotes, Isuzu engine overhaul package, Kubota mini excavator parts, Yanmar marine engine parts, Weichai heavy truck spares, full engine gasket set replacement, diesel engine fuel pump supply, engine turbocharger repair kit, crankshaft bearing clearance guides, diesel injector nozzle selection, cylinder block machining services, connecting rod assembly torque specs, water pump impeller replacement, and ensuring oil pump efficiency testing for all our clients.
Understanding your engine components is vital for proper maintenance and ordering. Here are 10 key accessories and their functions within industrial machinery:
Crankshaft (Cummins M11 Engine Block): Located in the Engine Block, it converts the reciprocal linear motion of the pistons into rotational motion.
Connecting Rod (Komatsu SAA6D140E Crankshaft): It links the Piston to the Crankshaft, transferring the force generated by combustion.
Turbocharger (Caterpillar C7 Exhaust Manifold): Attached to the Exhaust Manifold, it increases engine power by forcing compressed air into the combustion chamber.
Cylinder Head (Isuzu 4HK1 Cylinder Block): Installed on top of the Cylinder Block, it seals the combustion chamber and contains the valves and injectors.
Piston Ring (Kubota V2403 Piston Groove): Sits within the Piston Groove, providing a seal for the combustion process and controlling oil usage.
Water Pump (Yanmar 4TNV94L Engine Front): Located at the front of the engine, it circulates coolant through the system to prevent overheating.
Main Bearing (Weichai WP12 Crankshaft Cradle): Supports the Crankshaft within the Crankshaft Cradle (engine block), ensuring smooth rotation.
Injector (Cummins B6.7 Fuel Rail): Mounted on the Fuel Rail/Cylinder Head, it precisely atomizes and sprays diesel fuel into the cylinder.
Thrust Washer (Komatsu SAA6D125E Crankshaft End): Fitted at the Crankshaft End (main bearing saddle), it manages and limits the axial play (front-to-back movement) of the crankshaft.
Oil Pump (Caterpillar 3406 Oil Pan): Situated inside the Oil Pan/Engine Block, it pressurizes and circulates lubricating oil throughout the engine.
Excessive white smoke from an Isuzu 6HK1 Excavator Engine, especially during cold starts, often indicates unburnt fuel. The most common causes are low cylinder compression or late fuel injection timing.
Handling Solution: The first step is to check the glow plug operation and the integrity of the Cylinder Head gasket. If these are fine, a compression test should be performed. A detailed check of the Isuzu 6HK1 white smoke problem often requires specialized diagnostic tools to test the output and spray pattern of the Injector. If compression is the issue, it may point to a worn Piston Ring or a damaged Cylinder Liner, necessitating a full engine overhaul.
Ready to secure high-quality cylinder liner manufacturers components or need expert advice on your next Isuzu 6SD1TC engine rebuild? Our dedicated team is here to assist with everything from finding the exact Piston No: 1-12111-842-0 to arranging global freight for your bulk order.
