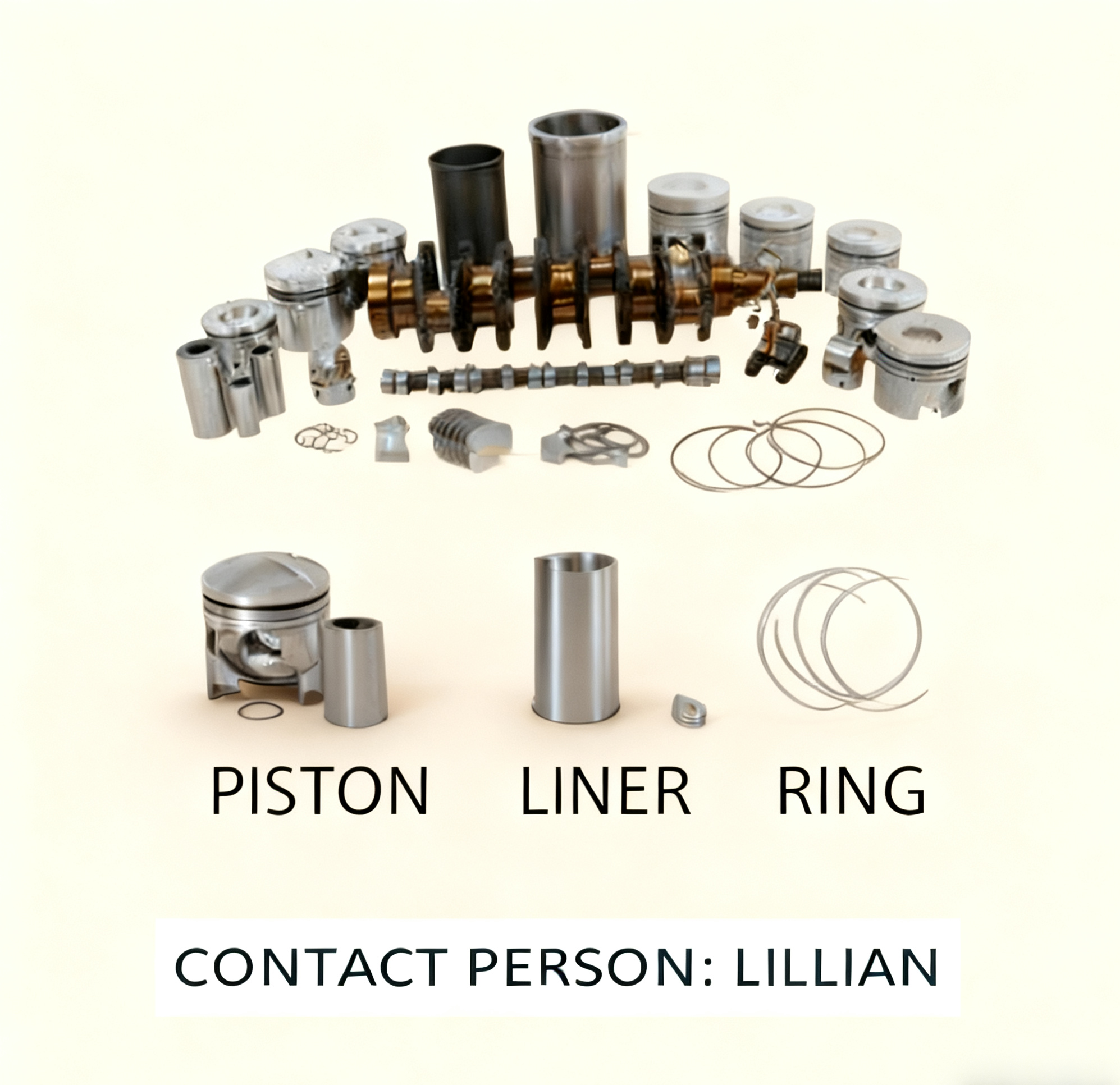

Sourcing High-Quality 10PC1 Piston Liner Ring Set for Heavy Machinery
As a premier source manufacturer, Honour Time Machinery Limited offers manufacturer direct sales and supports comprehensive OEM/ODM customization for various Cylinder Liner types. We are your reliable partner for foreign trade export, ensuring top-tier quality and competitive pricing for your engine rebuild needs.
| Engine Model | Piston No | Liner No | Ring Set No |
|---|---|---|---|
| 10PC1 | 1-12111-419-2 (1121114192) | 1-11261-076-1 (1112610761) | 1-12121-047-0 (1121210470) |
| Specification | Piston 1-12111-419-2 | Liner 1-11261-076-1 | Ring Set 1-12121-047-0 |
|---|---|---|---|
| Bore / Inside Bore | Approx. 135mm | Inside Bore: Approx. 135mm | RIK Equivalent No: 1121210470 |
| Cylinder Count / Outside Diameter | Per Cylinder Component | Bottom Outside: Approx. 142mm | TP Equivalent No: 1121210470 |
| Total Length | Approx. 185mm | Total Length: Approx. 255mm | NPR Equivalent No: 1121210470 |
| Compression Height / Top Outside | Approx. 110mm | Top Outside: Approx. 145mm | Top Ring Type: Keystone/Rectangular |
| Chamber / Flange Depth | Chamber Dia: Approx. 70mm | Flange Depth: Approx. 10mm | 2nd Ring Type: Taper Face |
| Ring Grooves / Surface Treatment | 3 Ring Grooves | Surface Treatment: Phosphate/Honing | Oil Ring Type: Coil/Multi-Piece |
| Pin Size / Finish | Pin Size: Approx. 50mm | FF/SF: Full Finished (FF) | Bushing No: 1-12341-016-0 (Example) |
Discover the difference with Honour Time Machinery Limited. We specialize in providing OEM-quality aftermarket Engine Assembly and critical engine components for major machinery brands including Cummins, Komatsu, and Caterpillar. Our featured product, the ISUZU 10PC1 Piston 1-12111-419-2, ensures optimal compression and longevity, making it a reliable choice for your industrial and Heavy Equipment Engine Parts needs. We focus on being a trusted China Diesel Engine Supplier, offering High-Performance Engine Bearings and kits for total engine solutions.
Looking for a comprehensive Diesel Engine Rebuild Kit? Our inventory includes the essential Liner 1-11261-076-1, perfectly matched with the Piston and Ring Set 1-12121-047-0. We supply everything from Crankshafts and Turbochargers to complete Engine Gasket Kits (like the Full Gasket Set Price), serving demanding applications like Kubota and Yanmar engines. Our goal is to be your one-stop shop for Sourcing Diesel Engine Parts and exporting Construction Machinery Parts Exporter globally.
The 10PC1 Piston Ring Set is precision-engineered for maximum sealing efficiency, reducing oil consumption and increasing power output. We also carry specialized components for Weichai engines, focusing on hard-to-find items like Fuel Pumps, Injectors, and Connecting Rods. Choose Honour Time for OEM Quality Cylinder Head and reliable Aftermarket Engine Components, guaranteeing the performance of your excavators and heavy equipment. We deliver quality at an Affordable Engine Overhaul Kits price point.
Cylinder Liner: Located in the Cylinder Block, it forms the cylinder wall. Example: Cummins QSK60 Cylinder Liner.
Piston: Moves up and down in the cylinder, converting pressure into mechanical force. Example: Komatsu PC400-8 Piston.
Piston Ring: Seals the combustion chamber and controls oil consumption, installed in the Piston grooves. Example: Caterpillar D8T Piston Rings.
Main Bearing: Supports the Crankshaft in the Cylinder Block. Example: Isuzu 4HK1 Main Bearing.
Connecting Rod Bearing (Con Rod Bearing): Connects the Piston to the Crankshaft. Example: Kubota V3800 Con Rod Bearing.
Thrust Washer: Controls the axial movement (end-play) of the Crankshaft. Example: Yanmar 4TNV94 Thrust Washer.
Turbocharger: A forced induction device that compresses air entering the engine, mounted on the exhaust manifold. Example: Weichai WD615 Turbocharger.
Water Pump: Circulates coolant through the engine's cooling system, usually belt-driven at the front of the engine. Example: Cummins L10 Water Pump.
Fuel Pump: Delivers fuel from the tank to the Injectors, located near the Engine Block. Example: Komatsu WA380-6 Fuel Pump.
Cylinder Head: Sits atop the Cylinder Block, forming the top of the combustion chamber and housing the valves. Example: Caterpillar 320D Cylinder Head.
Honour Time Machinery Limited is dedicated to exporting high-quality Industrial Engine Rebuilding components. We major in Engine Assembly and spare parts for world-leading brands: Cummins, Komatsu, Caterpillar, Isuzu, Kubota, Yanmar, and Weichai. Our extensive product line includes Cylinder Blocks, Oil Pumps, and full Marine Diesel Engine Components, ensuring we have the right parts for your machinery.
Failure: Premature Engine Bearing Wear in a Komatsu PC200-8 Excavator with a SAA6D107E Engine.
Cause: One of the most common causes is oil contamination (dirt, metal shavings, fuel dilution), or lack of proper oil film due to low oil pressure or improper Connecting Rod Bearing and Main Bearing clearance.
Solution: Immediate replacement of all damaged Crankshaft Bearings and a complete flush of the lubrication system. Always replace the Oil Pump if pressure is suspected, and use only high-quality oil filters. Source reliable, new Genuine Quality Engine Parts from Honour Time to ensure correct metallurgy and tolerance.
