As a Source Factory, Honour Time Machinery Limited offers Custom Development and Factory Direct supply for all types of Cylinder Liner components. Whether you need a standard replacement or a specially engineered solution, we are equipped for seamless Global Export Engine Components. Trust the original manufacturer for genuine quality and competitive pricing.
Caterpillar C7 Cylinder Liner | Komatsu PC200-8 Cylinder Liner | Cummins QSB6.7 Cylinder Liner

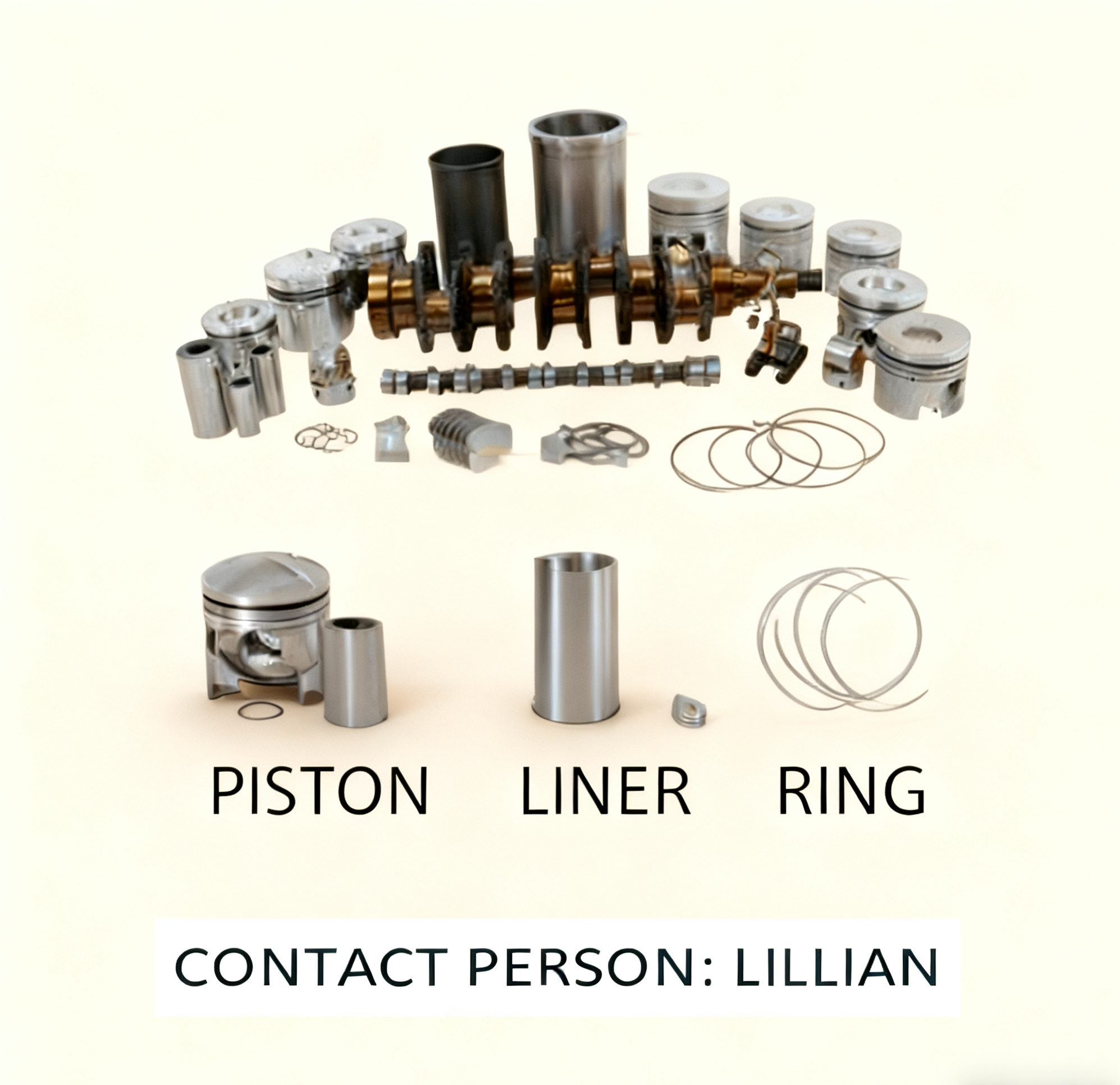

Honour Time provides Genuine Quality Replacement Engine Components for the Isuzu Engine Model 10PB1. We stock complete, ready-to-install kits featuring our highest quality Piston, Cylinder Liner, and Piston Ring sets. These Precision Engineered Engine Spares ensure optimal engine performance and longevity for heavy-duty applications.
| Isuzu 10PB1 Engine Component Specifications | ||
|---|---|---|
| Part Category | Honour Time Part No. | Cross-Reference No. |
| Piston | 1-12111-794-0 | 1121117940 |
| Cylinder Liner | 1-11261-063-0 | 1112610630 |
| Piston Ring Set | 1-12181-043-0 | 1121810430 |
For ordering, please reference both the hyphenated part number, such as 1-12111-794-0, and the simplified part number, 1121117940, to ensure accuracy in your Wholesale Engine Parts Distributor order.
We provide comprehensive technical details, ensuring our OEM Standard Engine Spare Parts fit perfectly and function reliably. These specifications are crucial for correct assembly and for anyone performing Affordable Excavator Engine Rebuild Kits installation.
| Isuzu 10PB1 Component Details | ||||||
|---|---|---|---|---|---|---|
| Piston No: 1-12111-794-0 | Liner No: 1-11261-063-0 | Ring Set No: 1-12181-043-0 | ||||
| Bore Diameter: 100 mm | Inside Bore: 100.00 mm | RIK No: | Top Ring: 2.5 mm | |||
| No. of Cyl: 4 | Bottom Outside: 102 mm | TP No: | 2nd Ring: 2.0 mm | |||
| Total Length: 90 mm | Total Length: 180 mm | NPR No: | Oil Ring: 4.0 mm | |||
| Comp Height: 55 mm | Top Outside: 105 mm | Bushing No: | Pin Size: 30 mm | |||
| Chamber Dia: 45 mm | Flange Depth: 6 mm | Ring Groove: 3-Ring | Surface Treatment: Nitrided | |||
| Pin Size: 30 mm | FF/SF: Full Finish | Flange Depth: 6 mm | N/A | |||
Honour Time Machinery Limited is your Reliable Diesel Engine Component Source for construction and mining equipment. Our primary focus is on major engine brands like Cummins, Komatsu, Caterpillar, Isuzu, Kubota, Yanmar, and Weichai. We specialize in engine assemblies and a wide range of spare parts, including Cylinder Liner, Piston, Piston Ring, Main Bearing, Con Rod Bearing, Thrust Washer, Overhaul Gasket Kit, Diesel Pump, Injector, Crankshaft, Turbocharger, Water Pump, Oil Pump, Cylinder Block, Cylinder Head, and Connecting Rod. We support both Construction Machinery Engine Parts and Mining Equipment Engine Spares requirements globally, ensuring we are the preferred supplier for Engine Bottom End Parts Supplier and Top-End Engine Component Specialist needs. We also serve the Farm Tractor Engine Components market.
Understanding the components is key to effective maintenance. Here are 10 parts vital for heavy-duty engines:
Crankshaft: (Engine Block) - Converts linear piston motion into rotational motion. Key part: Cummins QSB4.5 Crankshaft.
Connecting Rod: (Engine Block) - Connects the piston to the crankshaft. Key part: Caterpillar 320D Connecting Rod.
Cylinder Head Gasket: (Cylinder Head) - Seals the combustion chamber and fluid passages. Key part: Komatsu 6D107 Cylinder Head Gasket.
Turbocharger: (Exhaust Manifold) - Increases engine power by forcing more air into the combustion chamber. Key part: Isuzu 6HK1 Turbocharger.
Water Pump: (Front of Engine Block) - Circulates coolant through the engine and radiator. Key part: Kubota D1105 Water Pump.
Oil Pump: (Oil Pan/Sump or Engine Block) - Circulates lubricating oil under pressure to bearings. Key part: Yanmar 4TNV94 Oil Pump.
Fuel Injector: (Cylinder Head) - Sprays atomized fuel into the combustion chamber. Key part: Weichai WP12 Fuel Injector.
Main Bearing: (Crankshaft Supports/Block) - Supports the crankshaft rotation within the cylinder block. Key part: Cummins NT855 Main Bearing Set.
Thrust Washer: (Crankshaft/Main Bearing Cap) - Controls the axial movement of the crankshaft. Key part: Caterpillar 3306 Thrust Washer.
Piston Pin Bushing: (Connecting Rod Small End) - Provides a bearing surface for the piston pin. Key part: Komatsu S6D125 Piston Pin Bushing.
A common issue in heavy equipment, such as the Caterpillar 988K Wheel Loader (Cat C18 Engine), is excessive engine oil consumption with accompanying blue smoke. This often indicates a fault in the piston and liner area.
Detailed Solution for High Oil Consumption (Cat C18 Engine):
Diagnosis: Perform a compression test and check the crankcase pressure. High pressure usually indicates blow-by past the Piston Rings. Oil analysis can confirm contamination with fuel/coolant.
Root Cause: The primary causes are worn Piston Rings, damaged Cylinder Liner walls (scuffing), or plugged oil drain holes in the oil ring groove of the Piston. Valve stem seals are a secondary cause.
Repair Action: A full engine overhaul is typically required. Replace the entire Piston Liner Ring Kit with high-quality parts like those offered by Honour Time. Ensure the new Cylinder Liner is properly prepared and the Piston Rings are correctly gapped and aligned. Always replace the Overhaul Gasket Kit.
Verification: After repair, monitor oil levels and crankcase pressure over 50 hours of operation to confirm successful resolution.
We are dedicated to being your reliable partner for Reliable Diesel Engine Component Source. Contact us today for factory-direct pricing on the Isuzu 1-12111-794-0 Piston and related kits, or for any of your Global Export Engine Components requirements.
